Keel 基于 Kubernetes 的自动部署工具

如果我们只是简单使用 Docker 部署一些服务，可以使用 [[watchtower]] 这一类工具来自动更新容器版本。那如果是在 K8s/K3s 中要自动更新容器版本呢？我们通常的做法是更新一下 deployment.yaml 然后手动执行 kubectl apply -f deployment.yaml ，这样的方法既容易出错，又缺乏控制，用户需要登录访问集群，并执行操作。

那么我今天要介绍的这一款 Keel 工具，就可以轻松实现 K8s/K3s 集群中的容器自动版本更新。

什么是 Keel

Keel 是专为 Kubernetes 设计的轻量级自动部署工具，旨在简化容器镜像更新和应用部署的自动化流程。作为一个开源项目，Keel 通过监控容器镜像仓库的变化，自动触发 Kubernetes 集群中相应部署的更新，为开发者提供了一种无需手动干预的持续部署解决方案。

与传统的手动部署方式相比，Keel 采用了”一次配置，持续监控”的理念。开发者无需频繁执行 kubectl apply 命令或复杂的 CI/CD 流水线配置，只需通过简单的注解配置，即可实现应用的自动化更新。

特性

Keel 采用非常简单的架构设计，资源占用极低，仅需要 0.2 核 CPU 以及 256 MB 内存，这使得 Keel 非常适合资源有限的环境。而相对应的 ArgoCD，FluxCD 等都需要至少 1~2 核的 CPU，1GB 以上的内存。

Keel 也不需要外部数据库或持久化存储，直接从 Kubernetes 集群中获取信息。

支持多种触发模式

Web Hook 触发，容器镜像仓库主动通知 Keel
轮询检查，定期扫描镜像仓库检测版本变化
混合模式

更新策略

Keel 支持不同的更新策略

all，更新所有的版本，只要有更新就升级
major，只更新 major, minor, patch 版本
minor, 更新 minor, patch 版本
path，只更新 patch 版本
force，强制更新，比如设置 latest 标签时
glob，根据正则匹配更新版本

安装部署

Helm 安装

可以使用 Helm 来部署

helm repo add keel https://charts.keel.sh
helm repo update

创建 values.yaml 文件

image:
  repository: keelhq/keel
  tag: null
  pullPolicy: Always
# Enable insecure registries
insecureRegistry: false

# Polling is enabled by default,
# you can disable it setting value below to false
polling:
  enabled: true
  defaultSchedule: "@every 10m"

# 关闭 Helm Provider
helmProvider:
  enabled: false

# Google Container Registry
# GCP Project ID
gcr:
  enabled: false
  projectId: ""
  gcpServiceAccount: ""
  clusterName: ""
  pubSub:
    enabled: false

# AWS Elastic Container Registry
# https://keel.sh/v1/guide/documentation.html#Polling-with-AWS-ECR
ecr:
  enabled: false
  roleArn: ""
  accessKeyId: ""
  secretAccessKey: ""
  region: ""

notificationLevel: info

# Webhook Notification
# Remote webhook endpoint for notification delivery
webhook:
  enabled: false
  endpoint: ""

# Slack Notification
# bot name (default keel) must exist!
slack:
  enabled: false
  botName: ""
  token: ""
  channel: ""
  approvalsChannel: ""

# Hipchat notification and approvals
hipchat:
  enabled: false
  token: ""
  channel: ""
  approvalsChannel: ""
  botName: ""
  userName: ""
  password: ""

# Mattermost notifications
mattermost:
  enabled: false
  endpoint: ""

# MS Teams notifications
teams:
  enabled: false
  webhookUrl: ""

# Discord notifications
discord:
  enabled: false
  webhookUrl: ""

# 开启 Dashboard
basicauth:
  enabled: true
  user: "admin"
  password: "admin321"

# 开启 EMail 通知
mail:
  enabled: true
  from: "[email protected]"
  to: "[email protected]"
  smtp:
    server: "smtp.mail.com"
    port: 465
    user: "[email protected]"
    pass: "password"

# Keel service
# Enable to receive webhooks from Docker registries
service:
  enabled: true
  type: LoadBalancer
  externalPort: 9300
  clusterIP: ""

# Webhook Relay service
# If you don’t want to expose your Keel service, you can use https://webhookrelay.com/
# which can deliver webhooks to your internal Keel service through Keel sidecar container.
webhookRelay:
  enabled: false
  bucket: ""
  # webhookrelay.com credentials
  # Set the key and secret values here to create the keel-webhookrelay secret with this
  # chart -or- leave key and secret blank and create the keel-webhookrelay secret separately.
  key: ""
  secret: ""
  # webhookrelay docker image
  image:
    repository: webhookrelay/webhookrelayd
    tag: latest
    pullPolicy: IfNotPresent

# Use a secret file to define passwords and tokens of third parties.
secret:
  # Leave blank to use `keel.fullname`
  name: ""
  # Set to false to manage your own secret file, with terraform for example.
  create: true

# Keel self-update
# uncomment lines below if you want Keel to automaticly
# self-update to the latest release version
keel:
  # keel policy (all/major/minor/patch/force)
  policy: patch
  # trigger type, defaults to events such as pubsub, webhooks
  trigger: poll
  # polling schedule
  pollSchedule: "@every 10080m"
  # images to track and update
  images:
    - repository: image.repository
      tag: image.tag

# RBAC manifests management
rbac:
  enabled: true
  serviceAccount:
    # Kubernetes service account name to be used for ClusterRoleBinding and Deployment.
    # name:
    # Create a new Kubernetes service account automatically. Set to false if you want to use your own service account.
    # If rbac.serviceAccount.name is not set, a new name for the service account is generated
    create: true

# Resources
resources:
  limits:
    cpu: 200m
    memory: 512Mi
  requests:
    cpu: 100m
    memory: 256Mi

# NodeSelector
nodeSelector: {}

affinity: {}

tolerations: {}

# base64 encoded json of GCP service account
# more info available here: https://cloud.google.com/kubernetes-engine/docs/tutorials/authenticating-to-cloud-platform
# e.g. --set googleApplicationCredentials=$(cat <JSON_KEY_FIEL> | base64)
googleApplicationCredentials: ""

# Enable DEBUG logging
debug: false

# This is used by the static manifest generator in order to create a static
# namespace manifest for the namespace that keel is being installed
# within. It should **not** be used if you are using Helm for deployment.
createNamespaceResource: false

podAnnotations: {}

serviceAnnotations: {}
# Useful for making the load balancer internal
# serviceAnnotations:
#    cloud.google.com/load-balancer-type: Internal

aws:
  region: null

podDisruptionBudget:
  enabled: false
  maxUnavailable: 1
  minAvailable: null

# Google Cloud Certificates
gcloud:
  managedCertificates:
    enabled: false
    domains:
      - ""

ingress:
  enabled: false
  labels: {}
  annotations: {}
  #  kubernetes.io/ingress.class: nginx
  #  kubernetes.io/tls-acme: "true"
  hosts: []
#    - host: chart-example.local
#      paths:
#        - /
  tls: []
#    - secretName: chart-example-tls
#      hosts:
#        - chart-example.local

dockerRegistry:
  enabled: false
  name: ""
  key: ""

persistence:
  enabled: false
  storageClass: "-"
  size: 1Gi

安装部署

helm upgrade --install keel --namespace=keel --create-namespace keel/keel -f values.yaml

YAML 文件部署

如果不想使用 Helm，或者想要自己掌控，可以使用 YAML 文件部署。

---
apiVersion: v1
kind: Namespace
metadata:
  name: keel
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: keel
  namespace: keel
  labels:
    app: keel
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: keel
rules:
  - apiGroups:
      - ""
    resources:
      - namespaces
    verbs:
      - watch
      - list
  - apiGroups:
      - ""
    resources:
      - secrets
    verbs:
      - get
      - watch
      - list
  - apiGroups:
      - ""
      - extensions
      - apps
      - batch
    resources:
      - pods
      - replicasets
      - replicationcontrollers
      - statefulsets
      - deployments
      - daemonsets
      - jobs
      - cronjobs
    verbs:
      - get
      - delete #required to delete pods during force upgrade of the same tag
      - watch
      - list
      - update
  - apiGroups:
      - ""
    resources:
      - configmaps
      - pods/portforward
    verbs:
      - get
      - create
      - update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: keel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: keel
subjects:
  - kind: ServiceAccount
    name: keel
    namespace: keel
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: keel-data
  namespace: keel
  labels:
    app: keel
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 10Gi
  storageClassName: managed-nfs-storage
---
apiVersion: v1
kind: Service
metadata:
  name: keel
  namespace: keel
  labels:
    app: keel
spec:
  type: NodePort
  ports:
    - name: keel
      port: 9300
      targetPort: 9300
      protocol: TCP
      nodePort: 30930
  selector:
    app: keel
  sessionAffinity: None
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: keel
    release: keel
  name: keel
  namespace: keel
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  selector:
    matchLabels:
      app: keel
      release: keel
  template:
    metadata:
      labels:
        app: keel
        release: keel
    spec:
      serviceAccountName: keel
      containers:
        - command:
            - /bin/keel
          env:
            - name: NAMESPACE
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.namespace
            - name: POLL
              value: "true"
            - name: POLL_DEFAULTSCHEDULE
              value: "@every 1m"
            - name: BASIC_AUTH_USER
              value: admin
            - name: BASIC_AUTH_PASSWORD
              value: admin@123456
            - name: MAIL_SMTP_SERVER
              value: smtp.mail.com
            - name: MAIL_SMTP_PORT
              value: "25"
            - name: MAIL_SMTP_USER
              value: [email protected]
            - name: MAIL_TO
              value: [email protected]
            - name: MAIL_FROM
              value: [email protected]
            - name: NOTIFICATION_LEVEL
              value: info
          image: keelhq/keel:0.19.1
          imagePullPolicy: Always
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 9300
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 10
          name: keel
          ports:
            - containerPort: 9300
              protocol: TCP
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 9300
              scheme: HTTP
            initialDelaySeconds: 30
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 10
          resources:
            limits:
              cpu: 100m
              memory: 128Mi
            requests:
              cpu: 50m
              memory: 64Mi

然后运行 kubectl apply -f keel.yaml。

使用

Keel 提供了简洁的 Web 管理界面，可以通过浏览器访问 9300 端口。

触发器

Keel 可以通过 Webhook 和 poll 方式来检查镜像版本，Webhook 可以在容器镜像仓库或对应的代码仓库更新时主动通知 Keel 来更新镜像。

Pull Mode 是 Keel 主动拉取更新，Web Hook 则是主动通知 Keel 去更新。

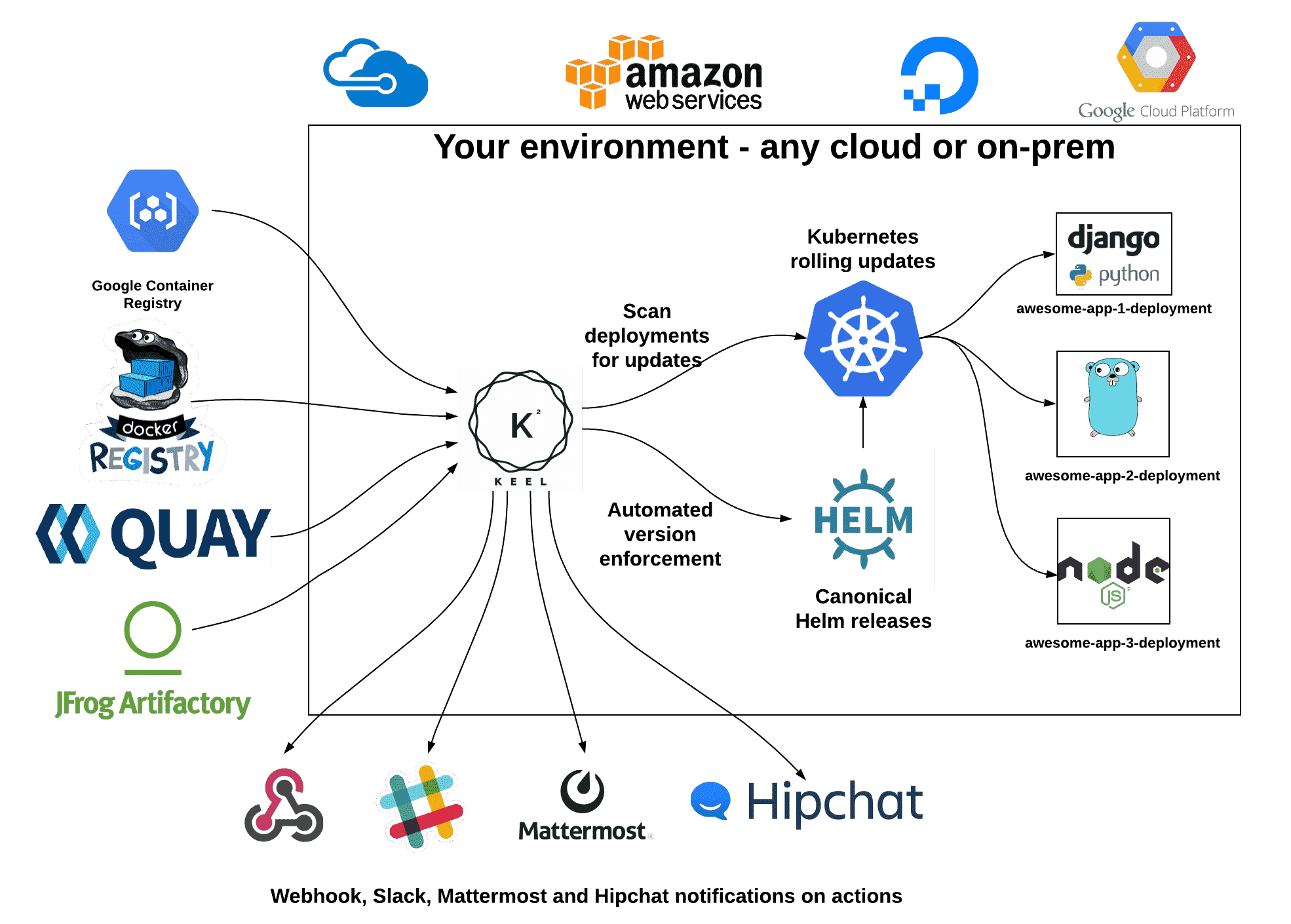

下面是一个主要的流程

修改代码提交到 GitHub
CI 构建产生容器镜像，并将镜像推送到 Registry
容器 Registry 收到新版本之后，通过 Web Hook 通知 Keel，或者在 CI 中配置推送完成之后调用 Web Hook
当 WebHook 收到之后，Keel 根据内容处理相关的资源

jd0M

实践

CI/CD 集成，推荐 GitHub Actions 和 Keel 集成使用

# GitHub Actions 工作流示例
name: CI/CD Pipeline

on:
  push:
    branches: [main]

jobs:
  build-and-push:
    runs-on: ubuntu-latest
    steps:
    - name: Checkout code
      uses: actions/checkout@v2

    - name: Build and push Docker image
      run: |
        docker build -t your-registry/app:${GITHUB_SHA} .
        docker push your-registry/app:${GITHUB_SHA}
        # 同时推送 latest 标签供 Keel 监控
        docker tag your-registry/app:${GITHUB_SHA} your-registry/app:latest
        docker push your-registry/app:latest

[[ArgoCD]]
